Styling

All the styles entries, support JS Templates, see here for some examples.

Easy styling options

For each element in the card, styles can be defined in 2 places:

• in the main part of the config
• in each state

Styles defined in each state are additive with the ones defined in the main part of the config. In the state part, just define the ones specific to your current state and keep the common ones in the main part of the config.

The style object members are:

• card: styles for the card itself. Styles that are defined here will be applied to the whole card and its content, unless redefined in elements below.
• icon: styles for the icon
• entity_picture: styles for the picture (if any)
• name: styles for the name
• state: styles for the state
• label: styles for the label
• lock: styles for the lock icon (see here for the default style)
• tooltip: styles for the tooltip (see Tooltip styles)
• spinner: styles for the spinner overlay
• custom_fields: styles for each of your custom fields. See Custom Fields

type: custom:button-card
[...]
styles:
  card:
    - xxxx: value
  icon:
    - xxxx: value
  entity_picture:
    - xxxx: value
  name:
    - xxxx: value
  state:
    - xxxx: value
  label:
    - xxxx: value
state:
  - value: 'on'
    styles:
      card:
        - yyyy: value
      icon:
        - yyyy: value
      entity_picture:
        - yyyy: value
      name:
        - yyyy: value
      state:
        - yyyy: value
      label:
        - yyyy: value

This will render:

• The card with the styles xxxx: value and yyyy: value applied
• Same for all the others.

See styling for a complete example.

Light entity color variable

If a light entity is assigned to the button, then:

• the CSS variable --button-card-light-color will contain the current light color
• the CSS variable --button-card-light-color-no-temperature will contain the current light without the temperature

You can use them both in other parts of the button. When off, it will be set to var(--paper-item-icon-color)

styles:
  name:
    - color: var(--button-card-light-color)
  card:
    - -webkit-box-shadow: 0px 0px 9px 3px var(--button-card-light-color)
    - box-shadow: 0px 0px 9px 3px var(--button-card-light-color)

Advanced styling options

For advanced styling, there are 2 other options in the styles config object:

• grid: mainly layout for the grid
• img_cell: mainly how you position your icon in its cell

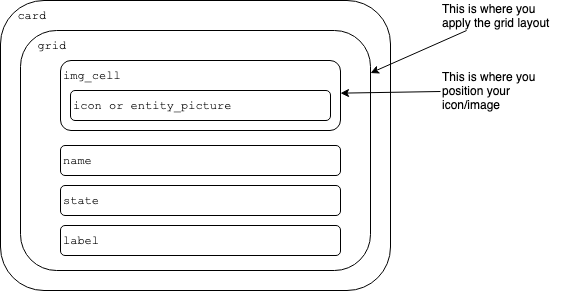

This is how the button is constructed (HTML elements):

The grid element uses CSS grids to design the layout of the card:

• img_cell element is going to the grid-area: i by default
• name element is going to the grid-area: n by default
• state element is going to the grid-area: s by default
• label element is going to the grid-area: l by default

You can see how the default layouts are constructed here and inspire yourself with it. We'll not support advanced layout questions here, please use [Home Assistant's community forum][forum] for that.

To learn more, please use Google and this excellent guide about CSS Grids.

For a quick overview on the grid-template-areas attribute, the following example should get you started:

- grid-template-areas: '"i n s" "i n s" "i n l"'

If we take the value and orient it into rows and columns, you begin to see the end result.

"i n s"
"i n s"
"i n l"

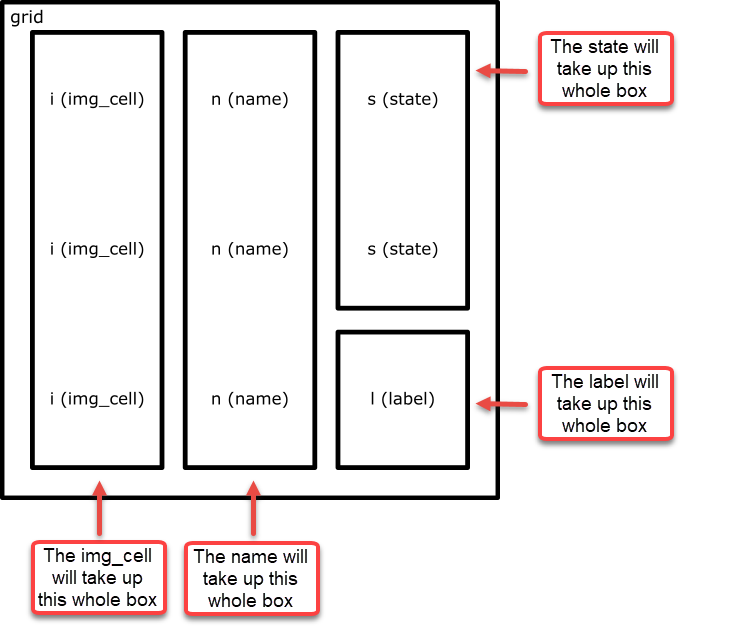

The end product will results in the following grid layout

Some examples:

• label on top:

  styles:
    grid:
      - grid-template-areas: '"l" "i" "n" "s"'
      - grid-template-rows: min-content 1fr min-content min-content
      - grid-template-columns: 1fr


• icon on the right side (by overloading an existing layout):

  type: 'custom:button-card'
  entity: sensor.sensor1
  layout: icon_state_name2nd
  show_state: true
  show_name: true
  show_label: true
  label: label
  styles:
    grid:
      - grid-template-areas: '"n i" "s i" "l i"'
      - grid-template-columns: 1fr 40%

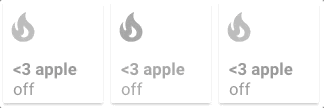

• Apple Homekit-like buttons:



  type: custom:button-card
  entity: switch.skylight
  name: <3 Apple
  icon: mdi:fire
  show_state: true
  styles:
    card:
      - width: 100px
      - height: 100px
    grid:
      - grid-template-areas: '"i" "n" "s"'
      - grid-template-columns: 1fr
      - grid-template-rows: 1fr min-content min-content
    img_cell:
      - align-self: start
      - text-align: start
    name:
      - justify-self: start
      - padding-left: 10px
      - font-weight: bold
      - text-transform: lowercase
    state:
      - justify-self: start
      - padding-left: 10px
  state:
    - value: 'off'
      styles:
        card:
          - filter: opacity(50%)
        icon:
          - filter: grayscale(100%)


Injecting CSS with extra_styles

Note: extra_styles MUST NOT be used on the first button-card of the current view, else it will be applied to all the cards in all Lovelace. It is not possible to fix this behaviour.

You can inject any CSS style you want using this config option. It is useful if you want to inject CSS animations for example. This field supports JS Templates.

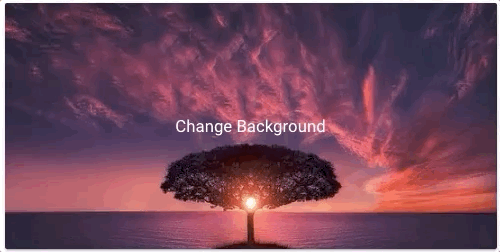

An example is better than words:

type: custom:button-card
name: Change Background
aspect_ratio: 2/1
extra_styles: |
  @keyframes bgswap1 {
    0% {
      background-image: url("/local/background1.jpg");
    }
    25% {
      background-image: url("/local/background1.jpg");
    }
    50% {
      background-image: url("/local/background2.jpg");
    }
    75% {
      background-image: url("/local/background2.jpg");
    }
    100% {
      background-image: url("/local/background1.jpg");
    }
  }
styles:
  card:
    - animation: bgswap1 10s linear infinite
    - background-size: cover
  name:
    - color: white
