Basic Examples

Show a button for the air conditioner (blue when on, var(--disabled-text-color) when off):

type: 'custom:button-card'
entity: switch.ac
icon: mdi:air-conditioner
color: rgb(28, 128, 199)

Redefine the color when the state if off to red:

type: 'custom:button-card'
entity: switch.ac
icon: mdi:air-conditioner
color: rgb(28, 128, 199)
state:
  - value: 'off'
    color: rgb(255, 0, 0)

Show an ON/OFF button for the home_lights group:

no-icon

type: 'custom:button-card'
entity: group.home_lights
show_icon: false
show_state: true

Light entity with custom icon and "more info" pop-in:

sofa

type: 'custom:button-card'
entity: light.living_room_lights
icon: mdi:sofa
color: auto
tap_action:
  action: more-info

Light card with card color type, name, and automatic color:

color

type: 'custom:button-card'
entity: light._
icon: mdi:home
color: auto
color_type: card
tap_action:
  action: more-info
name: Home
styles:
  card:
    - font-size: 12px
    - font-weight: bold

Horizontal stack with :

2x blank cards
1x volume up button with service call
1x volume down button with service call
2x blank cards

volume

type: horizontal-stack
cards:
  - type: 'custom:button-card'
    color_type: blank-card
  - type: 'custom:button-card'
    color_type: blank-card
  - type: 'custom:button-card'
    color_type: card
    color: rgb(223, 255, 97)
    icon: mdi:volume-plus
    tap_action:
      action: call-service
      service: media_player.volume_up
      data:
        entity_id: media_player.living_room_speaker
  - type: 'custom:button-card'
    color_type: card
    color: rgb(223, 255, 97)
    icon: mdi:volume-minus
    tap_action:
      action: call-service
      service: media_player.volume_down
      data:
        entity_id: media_player.living_room_speaker
  - type: 'custom:button-card'
    color_type: blank-card
  - type: 'custom:button-card'
    color_type: blank-card

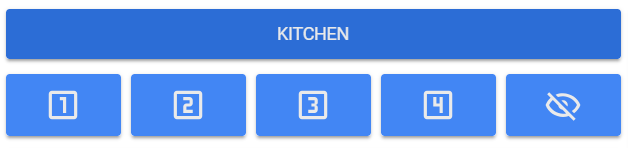

Vertical Stack with :

1x label card
Horizontal Stack with :
1x Scene 1 Button
1x Scene 2 Button
1x Scene 3 Button
1x Scene 4 Button
1x Scene Off Button

scenes

type: vertical-stack
cards:
  - type: 'custom:button-card'
    color_type: label-card
    color: rgb(44, 109, 214)
    name: Kitchen
  - type: horizontal-stack
    cards:
      - type: 'custom:button-card'
        entity: switch.kitchen_scene_1
        color_type: card
        color: rgb(66, 134, 244)
        icon: mdi:numeric-1-box-outline
      - type: 'custom:button-card'
        entity: switch.kitchen_scene_2
        color_type: card
        color: rgb(66, 134, 244)
        icon: mdi:numeric-2-box-outline
      - type: 'custom:button-card'
        entity: switch.kitchen_scene_3
        color_type: card
        color: rgb(66, 134, 244)
        icon: mdi:numeric-3-box-outline
      - type: 'custom:button-card'
        entity: switch.kitchen_scene_4
        color_type: card
        color: rgb(66, 134, 244)
        icon: mdi:numeric-4-box-outline
      - type: 'custom:button-card'
        entity: switch.kitchen_off
        color_type: card
        color: rgb(66, 134, 244)
        icon: mdi:eye-off-outline
