Styling

All the styles entries, support JS Templates, see here for some examples.

Easy styling options¶

For each element in the card, styles can be defined in 2 places:

in the main part of the config
in each state

Styles defined in each state are additive with the ones defined in the main part of the config. In the state part, just define the ones specific to your current state and keep the common ones in the main part of the config.

The style object members are:

card: styles for the card itself. Styles that are defined here will be applied to the whole card and its content, unless redefined in elements below.
icon: styles for the icon
entity_picture: styles for the picture (if any)
name: styles for the name
state: styles for the state
label: styles for the label
lock: styles for the lock icon (see here for the default style)
tooltip: styles for the tooltip (see Tooltip styles)
spinner: styles for the spinner overlay
custom_fields: styles for each of your custom fields. See Custom Fields

type: custom:button-card
[...]
styles:
  card:
    - xxxx: value
  icon:
    - xxxx: value
  entity_picture:
    - xxxx: value
  name:
    - xxxx: value
  state:
    - xxxx: value
  label:
    - xxxx: value
state:
  - value: 'on'
    styles:
      card:
        - yyyy: value
      icon:
        - yyyy: value
      entity_picture:
        - yyyy: value
      name:
        - yyyy: value
      state:
        - yyyy: value
      label:
        - yyyy: value

This will render:

The card with the styles xxxx: value and yyyy: value applied
Same for all the others.

See styling for a complete example.

Light entity color variable¶

If a light entity is assigned to the button, then:

the CSS variable --button-card-light-color will contain the current light color
the CSS variable --button-card-light-color-no-temperature will contain the current light without the temperature

You can use them both in other parts of the button. When off, it will be set to var(--paper-item-icon-color)

css-var

styles:
  name:
    - color: var(--button-card-light-color)
  card:
    - -webkit-box-shadow: 0px 0px 9px 3px var(--button-card-light-color)
    - box-shadow: 0px 0px 9px 3px var(--button-card-light-color)

Advanced styling options¶

For advanced styling, there are 2 other options in the styles config object:

grid: mainly layout for the grid
img_cell: mainly how you position your icon in its cell

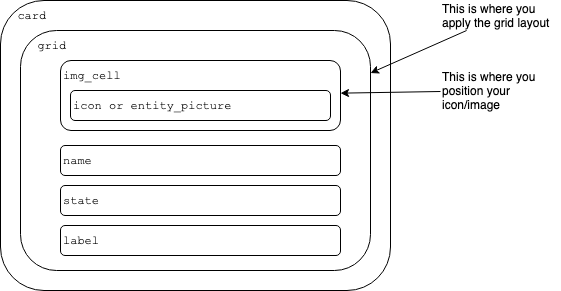

This is how the button is constructed (HTML elements):

The grid element uses CSS grids to design the layout of the card:

img_cell element is going to the grid-area: i by default
name element is going to the grid-area: n by default
state element is going to the grid-area: s by default
label element is going to the grid-area: l by default

You can see how the default layouts are constructed here and inspire yourself with it. We'll not support advanced layout questions here, please use [Home Assistant's community forum][forum] for that.

To learn more, please use Google and this excellent guide about CSS Grids.

For a quick overview on the grid-template-areas attribute, the following example should get you started:

- grid-template-areas: '"i n s" "i n s" "i n l"'

If we take the value and orient it into rows and columns, you begin to see the end result.

"i n s"
"i n s"
"i n l"

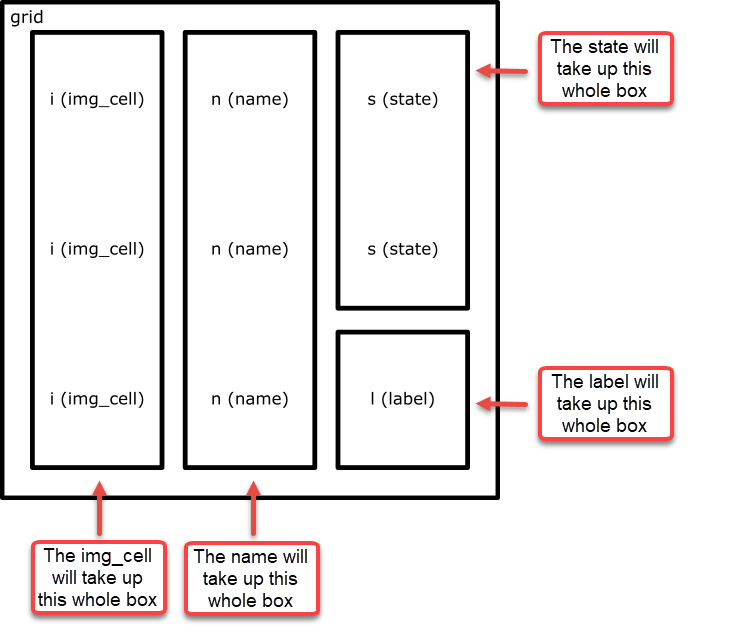

The end product will results in the following grid layout

Some examples:

label on top:

styles:
  grid:
    - grid-template-areas: '"l" "i" "n" "s"'
    - grid-template-rows: min-content 1fr min-content min-content
    - grid-template-columns: 1fr

icon on the right side (by overloading an existing layout):

type: 'custom:button-card'
entity: sensor.sensor1
layout: icon_state_name2nd
show_state: true
show_name: true
show_label: true
label: label
styles:
  grid:
    - grid-template-areas: '"n i" "s i" "l i"'
    - grid-template-columns: 1fr 40%

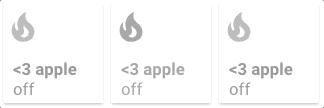

Apple Homekit-like buttons:

apple-like-buttons

type: custom:button-card
entity: switch.skylight
name: <3 Apple
icon: mdi:fire
show_state: true
styles:
  card:
    - width: 100px
    - height: 100px
  grid:
    - grid-template-areas: '"i" "n" "s"'
    - grid-template-columns: 1fr
    - grid-template-rows: 1fr min-content min-content
  img_cell:
    - align-self: start
    - text-align: start
  name:
    - justify-self: start
    - padding-left: 10px
    - font-weight: bold
    - text-transform: lowercase
  state:
    - justify-self: start
    - padding-left: 10px
state:
  - value: 'off'
    styles:
      card:
        - filter: opacity(50%)
      icon:
        - filter: grayscale(100%)

Injecting CSS with `extra_styles`¶

You can inject any CSS style you want using this config option. It is useful if you want to inject CSS animations for example. This field supports JS Templates.

Info

If you use config templates, all the extra_styles will be merged together from the deepest to the most shallow one, in this order.

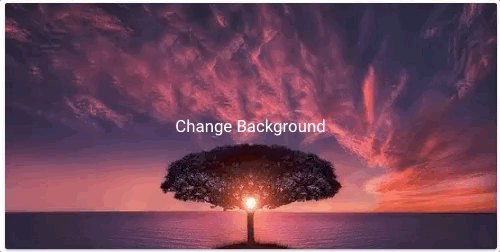

A simple example:

change_background

type: custom:button-card
name: Change Background
aspect_ratio: 2/1
extra_styles: |
  @keyframes bgswap1 {
    0% {
      background-image: url("/local/background1.jpg");
    }
    25% {
      background-image: url("/local/background1.jpg");
    }
    50% {
      background-image: url("/local/background2.jpg");
    }
    75% {
      background-image: url("/local/background2.jpg");
    }
    100% {
      background-image: url("/local/background1.jpg");
    }
  }
styles:
  card:
    - animation: bgswap1 10s linear infinite
    - background-size: cover
  name:
    - color: white

Using config templates, merging extra_styles

Those are the config templates defined:

button_card_templates:
  extraS1:
    template: extraS2
    extra_styles: |
      #name {
        color: red;
      }
  extraS2:
    extra_styles: |
      #name {
        color: blue;
        font-size: 10px;
      }
  extraS3:
    extra_styles: |
      [[[
        return `#name {
          color: ${entity.state === 'on' ? 'green' : 'purple'};
        }`;
      ]]]

Used like that:

type: 'custom:button-card'
section_mode: true
grid_options:
  rows: 4
  columns: 12
styles:
  name:
    - text-align: left
template: # (1)!
  - extraS1
  - extraS3
entity: switch.skylight
name: |
  [[[
    return "Should be green when on, purple when off<br/>and font-size: 10px"
  ]]]

If the entity's state is on, the resulting extra_styles will be:

#name {
  color: blue;
  font-size: 10px;
}
#name {
  color: red;
}
#name {
  color: green;
}
